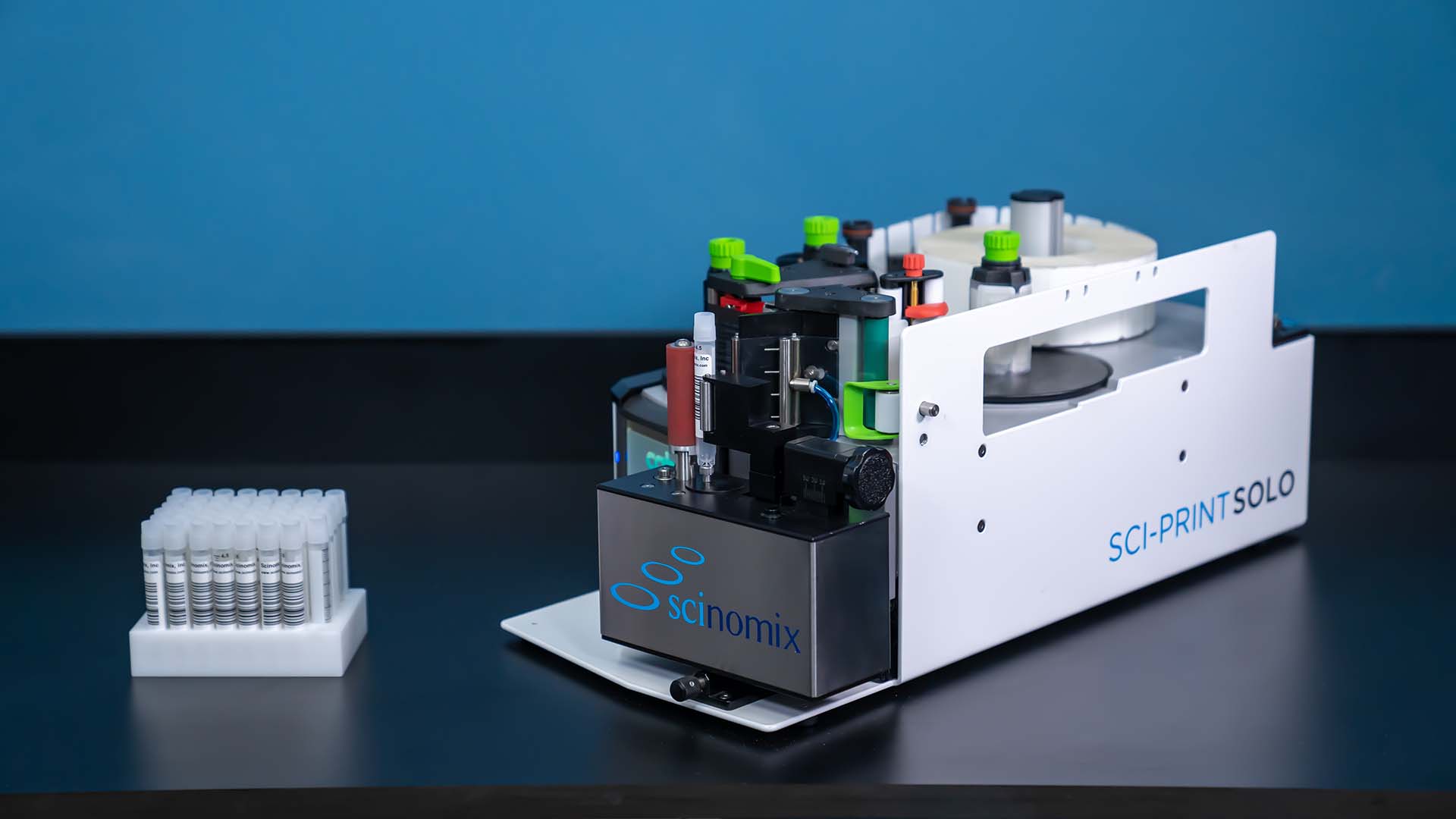

Scinomix Sci-Print SOLO machine with racked 15mL conical tubes

Scinomix Sci-Print SOLO machine labeling a 5mL dram vial

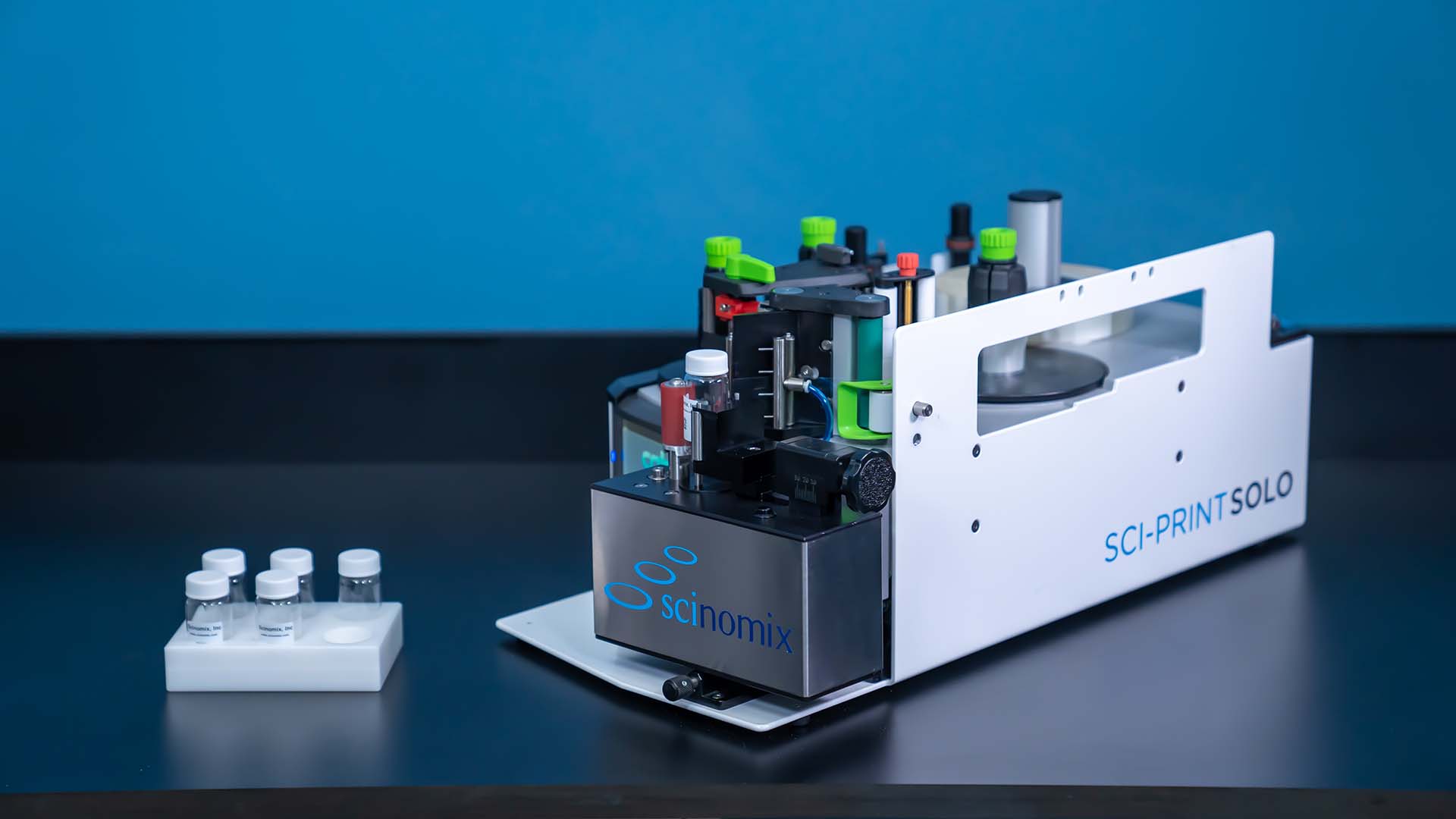

Scinomix Sci-Print SOLO machine labeling a 10mL glass vial

Scinomix Sci-Print SOLO machine labeling a 7mL microcentrifuge tube

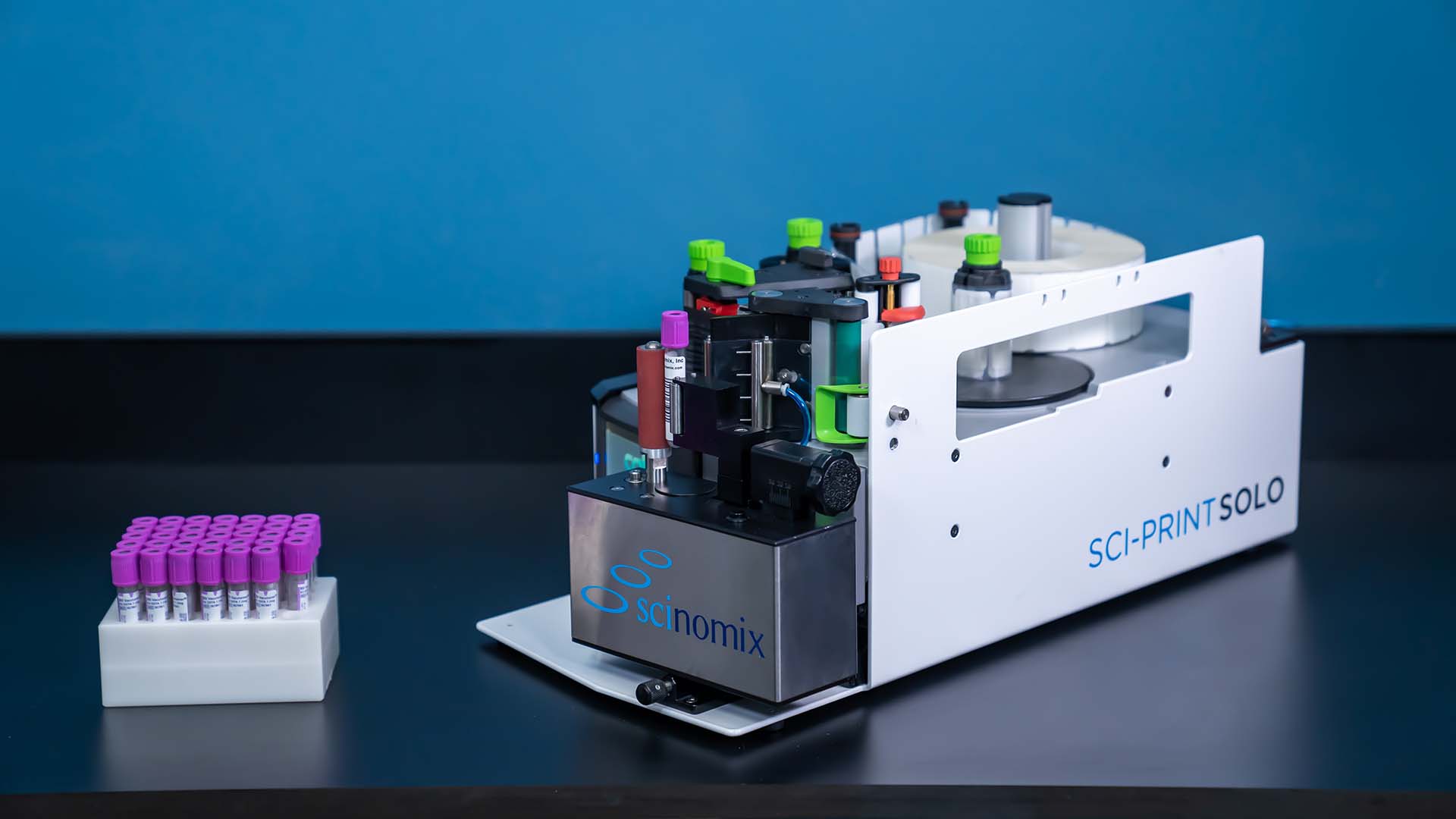

Scinomix Sci-Print SOLO machine labeling a 4mL vacutainer tube

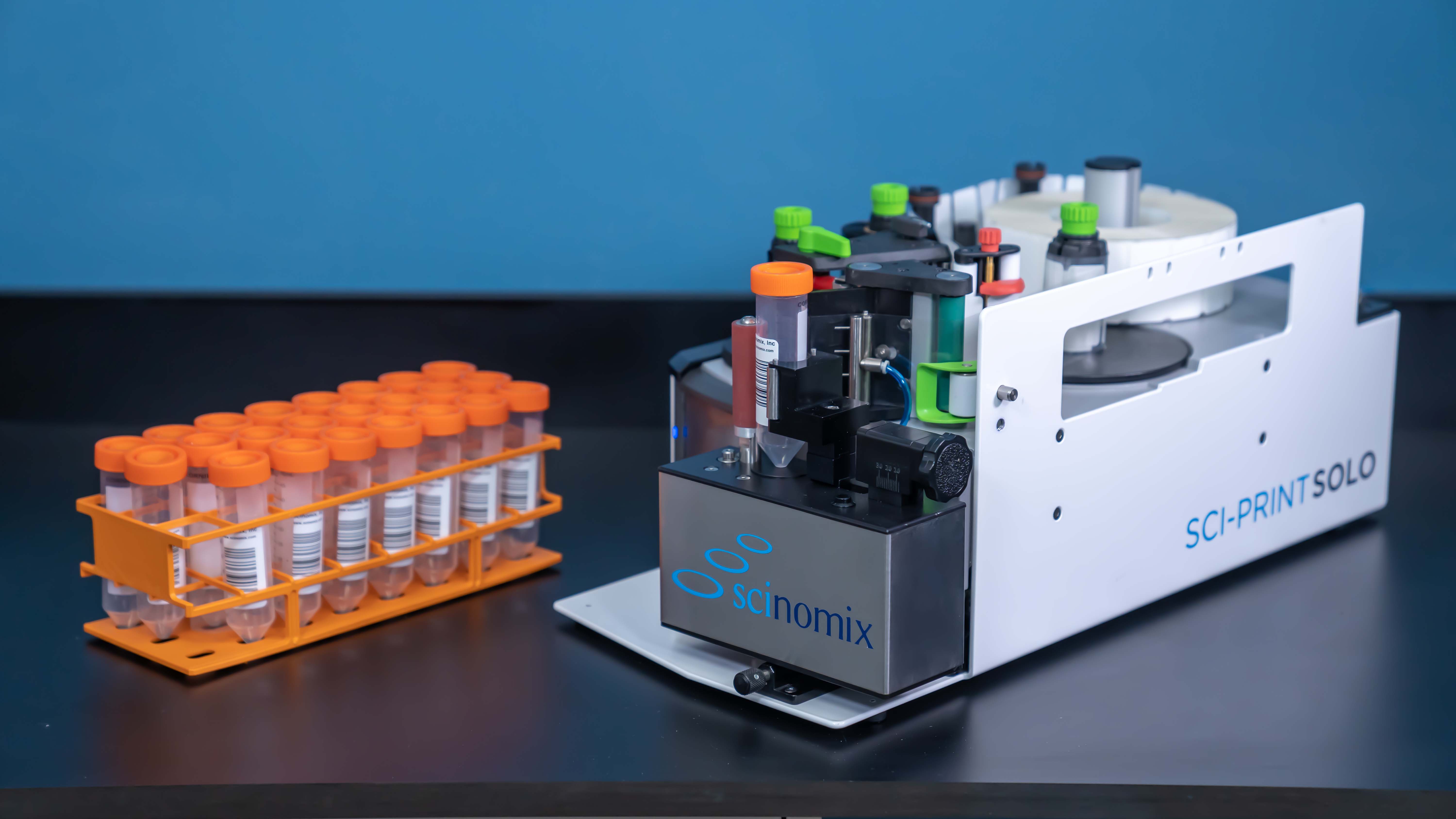

Scinomix Sci-Print SOLO machine labeling a 15mL conical tube

Lab tech opening cover of Sci-Print SOLO machine

Lab tech closing cover of Sci-Print SOLO machine

Sci-Print SOLO system printing bar code to labeled vial

Sci-Print SOLO system applying label to vial

Sci-Print SOLO system applying bar code to labeled centrifuge tube

Sci-Print SOLO system applying label to 50mL centrifuge tube

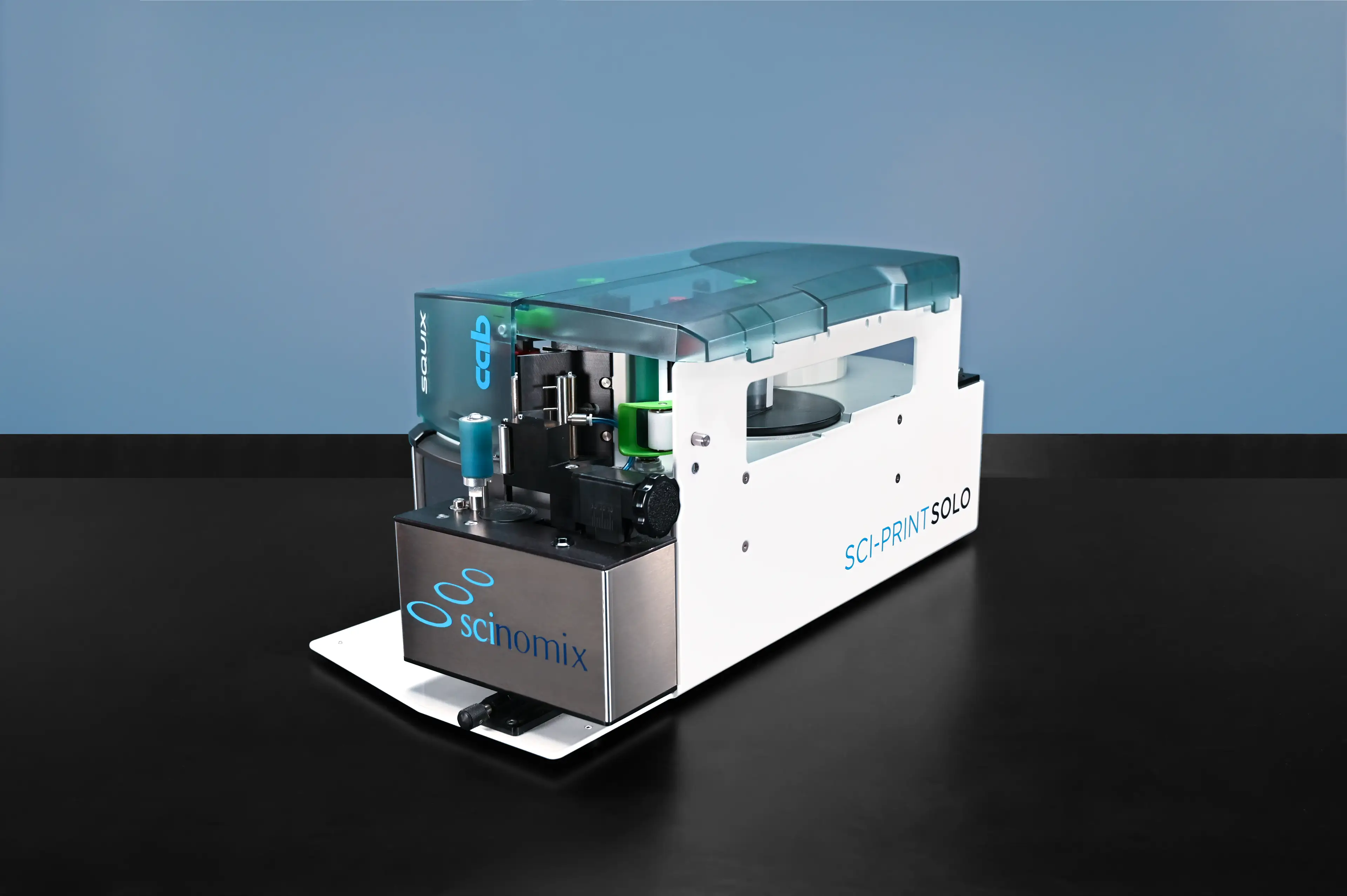

Sci-Print SOLO

Product Description

The Sci-Print SOLO (model # 1045) is used for manual labeling of tubes ranging from 0.5 mL to 50 mL. The Sci-Print SOLO is commonly integrated into larger automated systems such as the Tecan EVO.

Categories: Agricultural Science, Animal Health, Biobanking, Clinical, Drug Discovery, Forensics, Pharmaceutical, Plant & Food Testing, Tube Handling, Tube Labeling

Download the Product Sheet

Request Product Information

Name*
First Last
Company*
Email*
Address Location*
State*
State
Province*
Province
Region*
Region
Message*
CAPTCHA
Name
This field is for validation purposes and should be left unchanged.

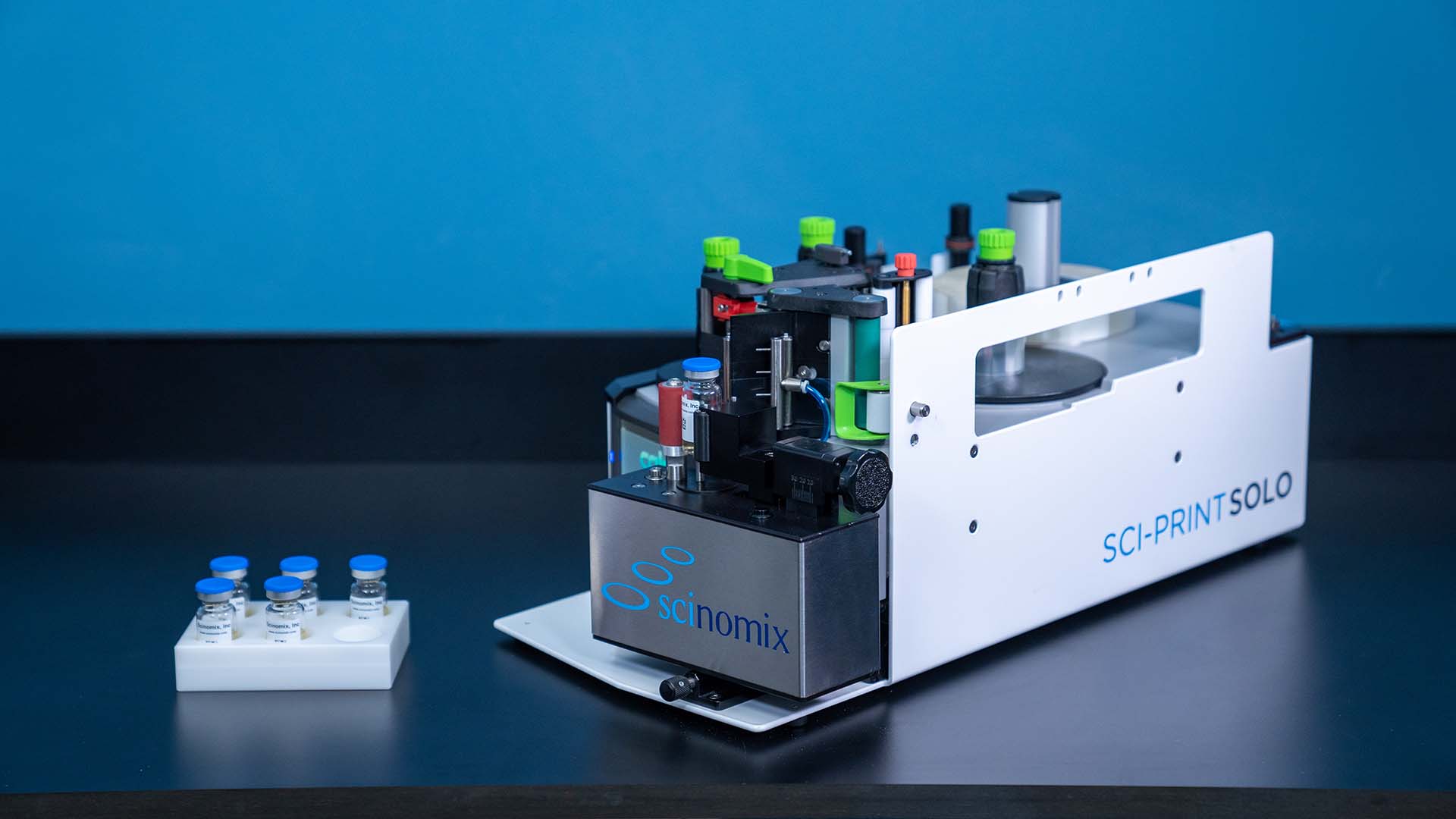

The Sci-Print SOLO is a semi-automated tube and vial labeler that can label tubes and vials ranging in size from 0.5 mL to 50 mL. The Sci-Print SOLO can be used stand alone as well as integrated into larger automated systems such as liquid handlers.

We also offer a variety of label kits to accommodate for your specific tube application. The label and ribbon combinations have been tested extensively with the Scinomix line of automated labelers. They have proven to be the best fit for ensuring optimal labeling performance.

Features

Thermal transfer printer (300 or 600 dpi)
Vial sizes from 0.5 mL up to 50 mL (8mm to 29mm diameter)
Windows based software
CE certified

Benefits

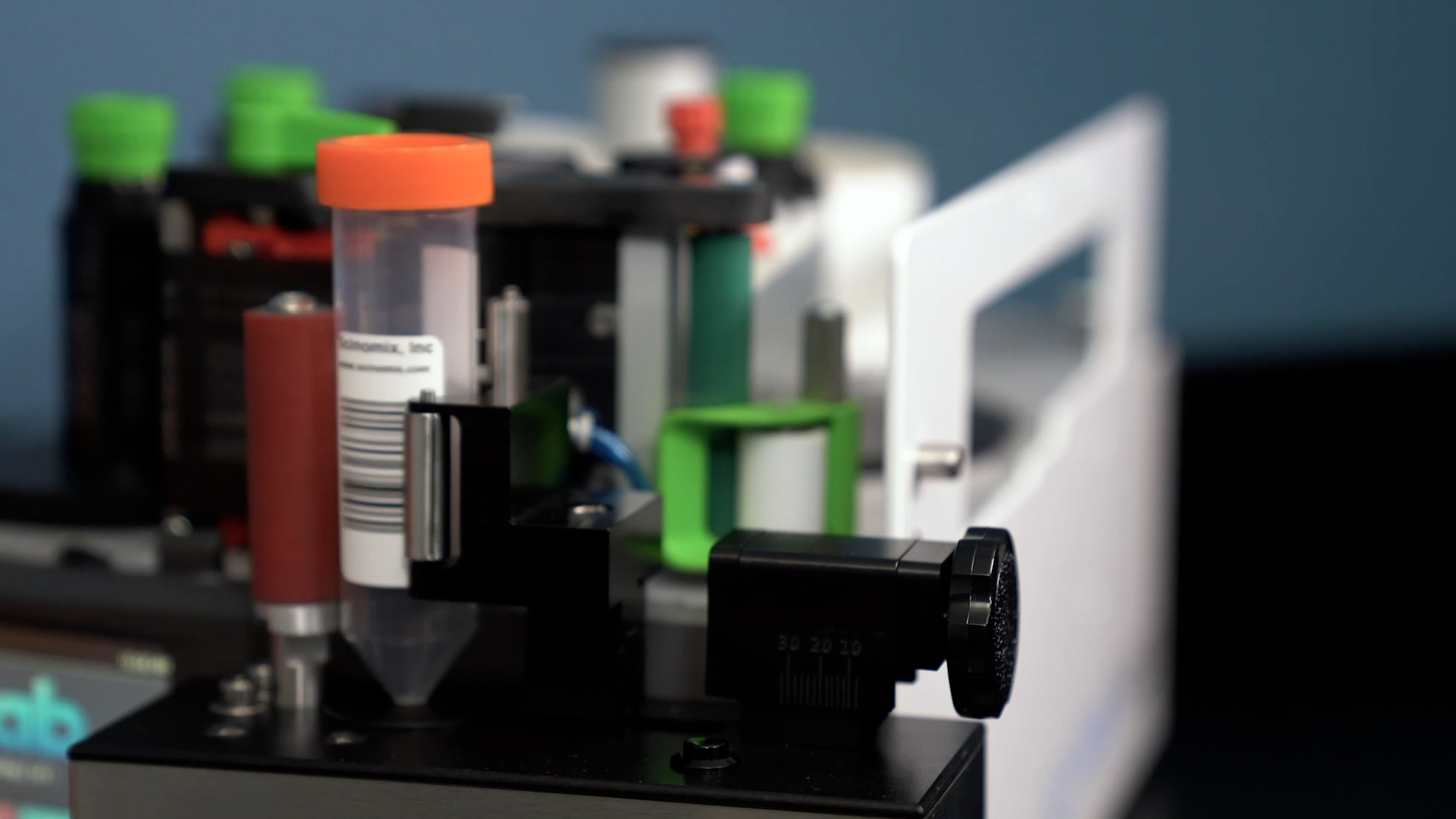

Consistency of label placement
Increases productivity and efficiency in the lab
Eliminates human error that can occur from hand labeling
Easily integrated into third party systems
User friendly based software

Enabled Symbologies

These are the current symbologies that we implement.

Code 128
Code 39 (full ASCII)
Interleaved 2 of 5
Data Matrix (2D)

Share With Your Colleagues

Specifications

System Requirements: Windows 7/8/8.1/10 .NET 4.5.1 framework

Network Requirements Requirements: dependent on software version. May need RS232 or ethernet.

Air Requirements: 80-90 PSI @ 1 CFM. The air supply must be oil/contaminant free, with an inline regulator and air dryer.

Power Requirements: 110-240 VAC 50/60 Hz 80W (Max)

Transport & Storage Temperature: -20 degrees C to +55 degrees C (20% to 80% non-condensing)

Operating Environment (Indoor use only)
Temperature: 10 degrees C to 32 degrees C
Humidity: 20% to 80% non-condensing
Altitude: Up to 2000M
Main Supply: +/- 10% Rated Voltage
Transient overvoltage: Installation Category (Overvoltage category) II
Rated pollution: Pollution degree II

Physical Dimensions: Length (when label arm is not extended): 29.8” (757mm), Length (short travel extension): 24.2” (614mm), Length (long travel extension): 31.6” (802mm), Width: 11.9” (302mm), Height: 9.8” (250mm), Weight: 27lbs

Labeling Rate: 4 seconds per tube

Tube Requirements: Volume range: 0.5 mL to 50 mL, Max Height:120 mm, Max Diameter:35 mm

Certifications: CE
